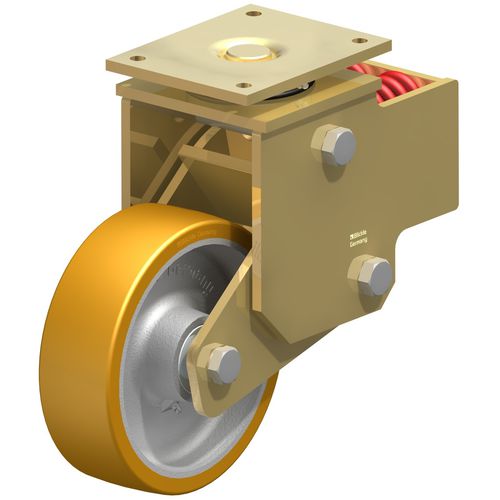

Swivel caster LSFN-GTH seriesbase platewith ball bearinghigh load capacity
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, non-marking, shock absorbing, spring-loaded, with grease nipple, steel, polyurethane, cast iron
- Load capacity
Max.: 2,400 kg
(5,291 lb)Min.: 800 kg
(1,764 lb)- Wheel diameter
Max.: 300 mm
(11.811 in)Min.: 160 mm
(6.299 in)- Tread width
Max.: 80 mm
(3.15 in)Min.: 50 mm
(1.97 in)
Description
Sprung heavy duty swivel and fixed castors with spring damping for exceptional operating comfort even at higher speeds. Available with steel springs, polyurethane springs or patented Woodruff key design with even better damper characteristics.
