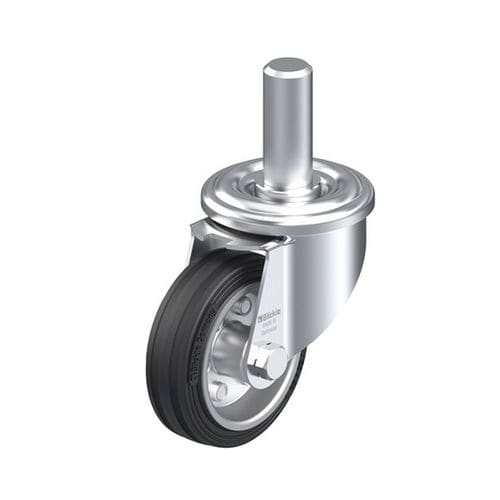

Swivel caster LEZ-VE series
threaded studlow-noisesteel

swivel caster
swivel caster
swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product

Go to the Blickle Räder+Rollen GmbH u. Co. KG website for more information

Characteristics

Type
swivel
Mount
threaded stud
Other characteristics
low-noise, steel, rubber, pressed steel, thermoplastic rubber
Load capacity

Min.: 50 kg
(110 lb)

Max.: 205 kg
(452 lb)

Wheel diameter

Min.: 80 mm
(3.15 in)

Max.: 200 mm
(7.874 in)

Tread width

Min.: 25 mm
(0.98 in)

Max.: 50 mm
(1.97 in)

Description

The rim sections used in the VE wheel series are pressed together with the standard solid rubber tyre and the roller bearing. The wheel series provides an excellent level of operational comfort and is resistant to many aggressive substances. With a hardness of 80 Shore A, the tread is especially gentle on the floor and quiet. The wheels of the VE series are used in manually operated transport units and food carts, as support wheels on trailers and in a wide range of small units like compressors or welding equipment. The VE series is available with a stem fitting as an alternative to a plate and bolt hole fitting. LEZ series: Pressed steel swivel bracket with stem
