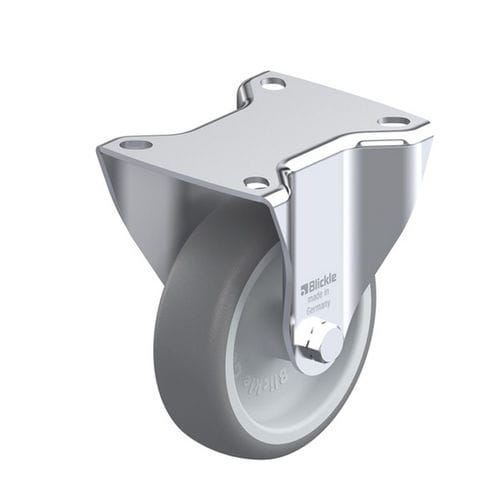

Fixed caster B-TPA seriesbase platelow-noisepressed steel
Add to favorites
Compare this product
Characteristics
- Type
- fixed
- Mount
- base plate
- Other characteristics
- low-noise, pressed steel, polypropylene, thermoplastic rubber, elastomer
- Load capacity
Max.: 250 kg
(551 lb)Min.: 100 kg
(220 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 40 mm
(1.57 in)Min.: 32 mm
(1.26 in)
Description
Wheels and castors in the TPA series have a tread of high-quality thermoplastic rubber-elastomer (TPE) and an impact-resistant polypropylene wheel centre. The grey tread with a hardness of 85 Shore A is chemically bonded to the wheel centre. The wheels are non-marking and characterised by low rolling and swivel resistance.
The oil in the tread may cause some discolouration on sensitive surfaces. In such cases, the VPP, POES, POEV oder PATH series can be used as an alternative.
Blickle also provides a suitable fixed castor series in addition to the swivel castors:
B series: B series: Pressed steel fixed bracket with top plate fitting, medium duty design
