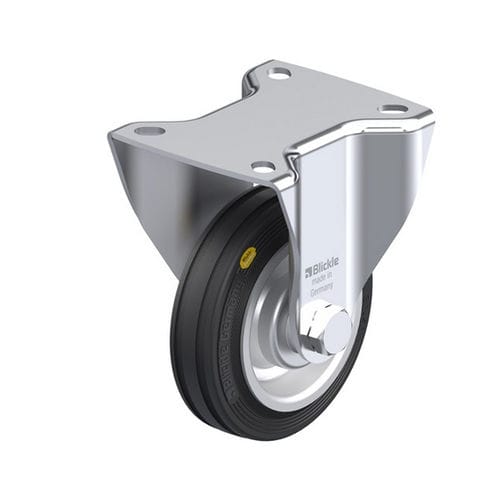

Fixed caster BK-RD series
base platelow-noisesteel

fixed caster
fixed caster
fixed caster
Add to favorites
Compare this product

Go to the Blickle Räder+Rollen GmbH u. Co. KG website for more information

Characteristics

Type
fixed
Mount
base plate
Other characteristics
low-noise, steel, rubber, pressed steel
Load capacity

Max.: 350 kg
(772 lb)

Min.: 100 kg
(220 lb)

Wheel diameter

Max.: 200 mm
(7.874 in)

Min.: 100 mm
(3.937 in)

Tread width

Max.: 50 mm
(1.97 in)

Min.: 30 mm
(1.18 in)

Description

The solid rubber tyres in the RD series are made up of two components: a solid rubber core and a highly elastic tread. The tyres have a hardness of 65 Shore A. The tread provides a higher level of operational comfort, higher load capacities and a lower level of rolling resistance than standard solid rubber tyres. The blue-passivated steel rim structure with tubular steel hub is bolted to the tyre or pressed in centrally. The RD series is perfectly suited for manually operated transport units capable of handling medium to high loads or for mobile equipment.
