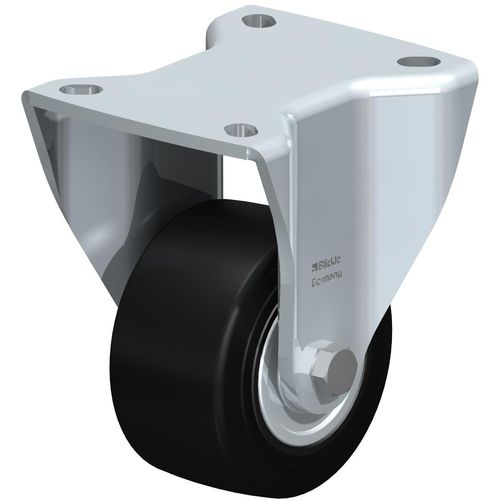

Fixed caster BH-SE seriesbase platehigh load capacitylow-noise
Add to favorites
Compare this product
Characteristics
- Type
- fixed
- Mount
- base plate
- Other characteristics
- high load capacity, low-noise, polyamide, pressed steel, elastic rubber
- Load capacity
Max.: 850 kg
(1,874 lb)Min.: 200 kg
(441 lb)- Wheel diameter
Max.: 250 mm
(9.843 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 60 mm
(2.36 in)Min.: 45 mm
(1.77 in)
Description
The wheel centre of the SE series is made of triple-welded pressed steel with a tubular steel hub, onto which the high-quality elastic solid rubber tread is vulcanised. The tread is pressed onto the wheel centre for items with a suffix of -Z. The black tread is very quiet and has very good floor preservation properties. The tyres have a hardness of 65 Shore A and provide a very high level of operational comfort. The wheels are designed specifically for the transport of heavy loads in a wide range of applications. Speeds of up to 16 km/h are possible thanks to the rugged design.
