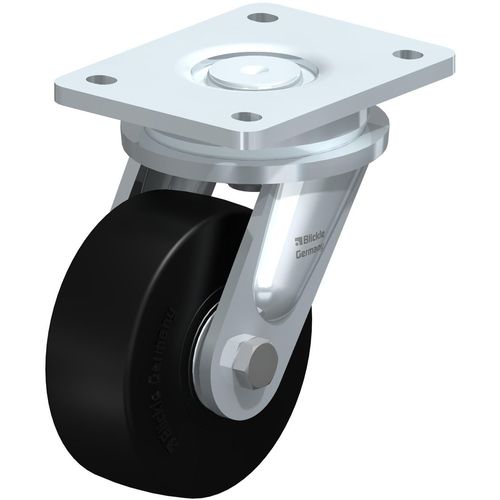

Swivel caster LO-SE seriesbase platewith ball bearinghigh load capacity
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, high load capacity, low-noise, steel, polyamide, elastic rubber
- Load capacity
Max.: 850 kg
(1,874 lb)Min.: 320 kg
(705 lb)- Wheel diameter
Max.: 250 mm
(9.843 in)Min.: 125 mm
(4.921 in)- Tread width
Max.: 80 mm
(3.15 in)Min.: 50 mm
(1.97 in)
Description
The wheel centre of the SE series is made of triple-welded pressed steel with a tubular steel hub, onto which the high-quality elastic solid rubber tread is vulcanised. The tread is pressed onto the wheel centre for items with a suffix of -Z. The black tread is very quiet and has very good floor preservation properties. The tyres have a hardness of 65 Shore A and provide a very high level of operational comfort. The wheels are designed specifically for the transport of heavy loads in a wide range of applications. Speeds of up to 16 km/h are possible thanks to the rugged design.
