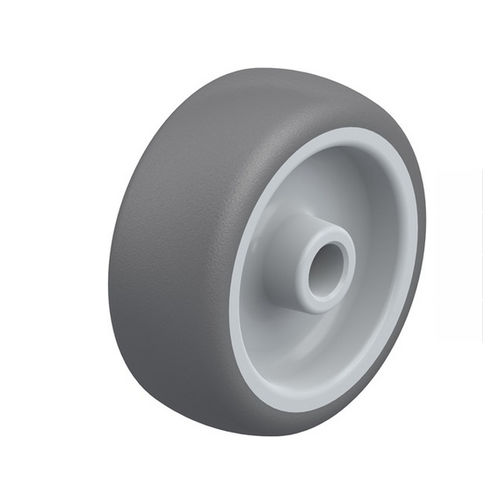

Wheel with solid tire PATH series
thermoplasticlow-noise

Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 2
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 3
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 4
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 5
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 6
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 7
Wheel with solid tire - PATH series - Blickle Räder+Rollen GmbH u. Co. KG - thermoplastic / low-noise - image - 8
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
thermoplastic
Other characteristics
low-noise
Load capacity

Max.: 500 kg
(1,102 lb)

Min.: 150 kg
(331 lb)

Diameter

Max.: 200 mm
(7.87 in)

Min.: 80 mm
(3.15 in)

Tread width

Max.: 40 mm
(1.57 in)

Min.: 32 mm
(1.26 in)

Description

Wheels and castors in the PATH series consist of a high-quality thermoplastic polyurethane tread (TPU) and an impact-resistant nylon wheel centre. The tread has a hardness of 94 Shore A and is cast onto the wheel centre. It is non-marking and non-staining. The tread has a very low level of rolling and swivel resistance, while also being highly abrasion-resistant. The PATH series is frequently used for hygiene applications. The electrically conductive version is frequently used for medical devices to protect them against electric discharge. The POTH series is preferred for higher load capacities.
