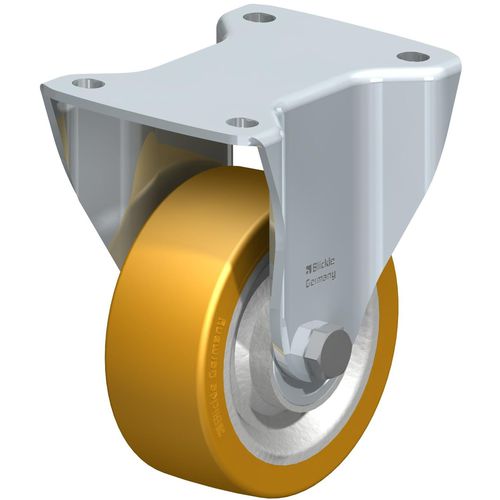

Fixed caster BH-SETH series
base platehigh load capacitynon-marking

Fixed caster - BH-SETH series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / high load capacity / non-marking
Fixed caster - BH-SETH series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / high load capacity / non-marking
Fixed caster - BH-SETH series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / high load capacity / non-marking - image - 2
Fixed caster - BH-SETH series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / high load capacity / non-marking - image - 3
Fixed caster - BH-SETH series - Blickle Räder+Rollen GmbH u. Co. KG - base plate / high load capacity / non-marking - image - 4
Add to favorites
Compare this product


Characteristics

Type
fixed
Mount
base plate
Other characteristics
high load capacity, non-marking, low-noise, shock absorbing, elastic, steel, pressed steel, elastomer, polyurethane
Load capacity

Max.: 900 kg
(1,984 lb)

Min.: 500 kg
(1,102 lb)

Wheel diameter

Max.: 250 mm
(9.843 in)

Min.: 125 mm
(4.921 in)

Tread width

50 mm, 60 mm
(1.97 in, 2.36 in)

Description

The wheel centre of the SETH series is made of triple-welded pressed steel with a tubular steel hub, onto which the high-quality polyurethane-elastomer Blickle Extrathane® tread is cast. This provides a high resistance to cut and tear propagation, low rolling resistance and a high load capacity. The SETH series can also be used for high speed applications up to 10 km/h with a reduced load capacity. The ultra-robust wheel centre makes the wheels particularly resistant to dirt and shocks.
