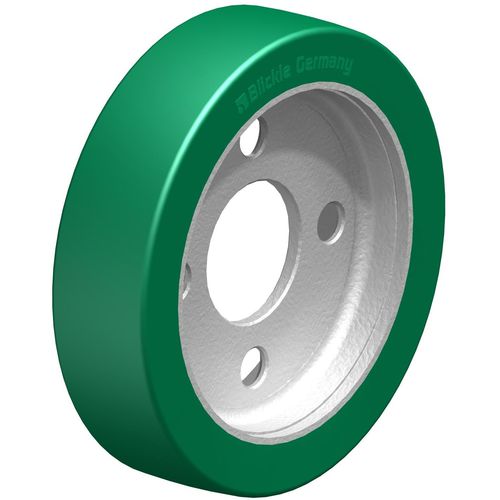

Wheel with solid tire GSTA series
polyurethanefor heavy loadslow-noise

Wheel with solid tire - GSTA series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / low-noise
Wheel with solid tire - GSTA series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / low-noise
Wheel with solid tire - GSTA series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads / low-noise - image - 2
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
polyurethane
Applications
for heavy loads
Other characteristics
low-noise, elastic
Load capacity

Min.: 700 kg
(1,543 lb)

Max.: 2,500 kg
(5,512 lb)

Diameter

Min.: 200 mm
(7.87 in)

Max.: 400 mm
(15.75 in)

Tread width

Min.: 50 mm
(1.97 in)

Max.: 100 mm
(3.94 in)

Description

The Blickle standard range includes five series of hub fitting wheels. The wheel centres are made from pressed steel or grey cast iron. The treads are made from the polyurethanes Softhane® and Besthane® or rubber. Depending on the wheel series, the tread / tyre is firmly cast, pressed-on or vulcanised to the wheel centre or fitted to the pressed steel rim. The PA series offers pneumatic tyres in the form of a hub fitting wheel, which provides outstanding floor surface preservation. Hub fitting wheels are mainly used on industrial trucks and driverless transport systems .They are also used for a variety of mechanical and systems engineering applications.
