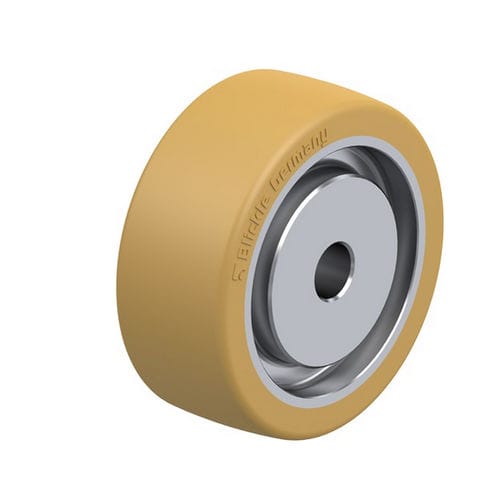

Wheel with solid tire VSVU series
polyurethanefor heavy loads

Wheel with solid tire - VSVU series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads
Wheel with solid tire - VSVU series - Blickle Räder+Rollen GmbH u. Co. KG - polyurethane / for heavy loads
Add to favorites
Compare this product

Go to the Blickle Räder+Rollen GmbH u. Co. KG website for more information

Characteristics

Type
with solid tire
Hub material
polyurethane
Applications
for heavy loads
Load capacity

Min.: 700 kg
(1,543 lb)

Max.: 2,400 kg
(5,291 lb)

Diameter

Min.: 125 mm
(4.92 in)

Max.: 300 mm
(11.81 in)

Tread width

Min.: 50 mm
(1.97 in)

Max.: 80 mm
(3.15 in)

Description

The tread in the VSB and VSVU basic wheel series is directly cast onto a steel wheel centre with a hole. This is made from the high-quality polyurethane-elastomer Blickle Besthane® or Vulkollan® with a hardness of 92 Shore A. The tread has a high dynamic load capacity and can be used at speeds up to 16 km/h. It also provides high cut and tear propagation resistance. The wheel centres of the VSB and VSVU wheel series are easy to machine individually, allowing them to be tailored to specific requirements. The GB or GVU series can be used as a running wheel.
