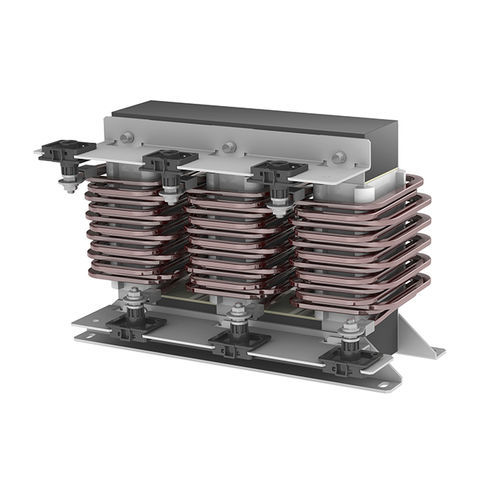

Wire-wound inductor LR3-AD004-404-0

DCharmonicline

Rated current 3 x 4 - 3 x 900 A Insulation class H Inductance7,350 – 0,024 mH Short-circuit voltage (uK) 3 %, 4 %, 5% Rated voltage 3 x 400 Vac, 3 x 480 Vac Degree of protection IP 00 Ambient temperature +104 °F / +40 °C Benefits Ensuring the short-circuit voltage of 3, 4 or 5 % to the mains Increases the service life of equipment Low ripple Starting current limitation Power harmonic mitigation Use as line reactor, commutating reactor or PFC reactor Bridging voltage dips Peak current limitation Very good corrosion protection and low noise due to vacuum impregnation AD types with UL approval, AE types with UL Listed approval Standards Line- and commutation reactor to UL 506, CSA 22.2 Approvals UL 506, CSA 22.2 Applications Line reactor to minimize mains pollution, to reduce the reactive-power components and charging currents in the DC link capacitor and to improve the cos(phi).
