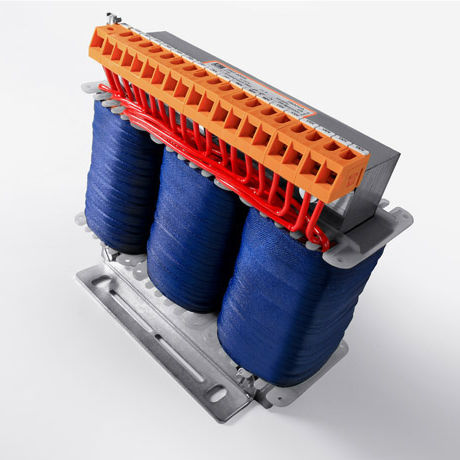

Power auto-transformer DSP series cast resinthree-phasefloor-standing
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- cast resin
- Electrical characteristics
- three-phase
- Mounting
- floor-standing
- Other characteristics
- vacuum impregnation
- Primary voltage
400 V
- Secondary voltage
130 V, 240 V
- Primary current
Min.: 1.5 A
Max.: 15 A
Description
General Data
Rated input voltage 3 x 400 Vac
Rated output voltage 3 x 130 ‑ 3 x 240 Vac (5 stages)
Rated current 3 x 1.5 ‑ 3 x 15 A
Insulation class E
Maximum ambient temperature 40 °C
Degree of protection IP 00
Advantages
Low weight and small size (compared to isolating transformers)
Very high efficiency
Very good moisture protection and low noise thanks to BLOCKIMPEX vacuum impregnation
Contact protected screw connection terminals complying with UVV BGV A3
Simple mounting thanks to robust metal fixing rail with oval slots
