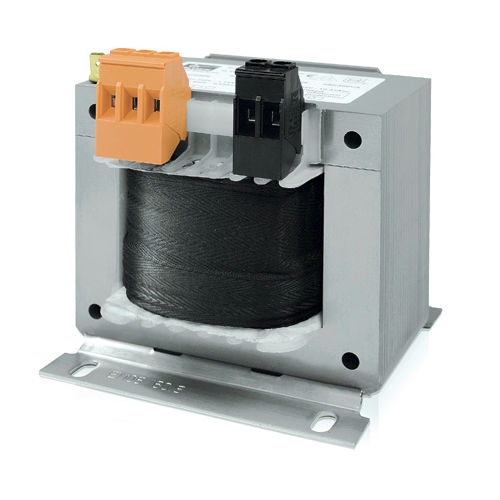

Power transformer FST series encapsulatedsingle-phaseDIN rail mount
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Electrical characteristics
- single-phase
- Mounting
- DIN rail mount
- Other characteristics
- compact, control, laminated
- Electric power
0.1 kVA, 0.16 kVA, 0.25 kVA
(0.136 hp, 0.2175 hp, 0.3399 hp)- Primary voltage
230 V, 400 V
- Secondary voltage
24 V, 230 V
Description
General Data
Designated input voltage: 230 V/ 400 V
Designated output voltage: 24 V
Designated output power ( power factor 1 ): 160 VA
Designated output power ( power factor 0,5 ): 340 VA
Insulation class: B
Max. ambient temperature: 40°C
Protection index: IP00
Advantages
With integrated fail‑safe protection
High performance per volume thanks to compact design
Excellent switch‑on response thanks to reduced starting currents
May be operated at 50 ‑ 60 Hz
Excellent corrosion resistance and low noise thanks to BLOCKIMPEX
Primary side for input voltage 230 V and 400 V
100 VA and 160 VA versions for mounting with integrated DIN rail mounting in compliance with DIN 50022
