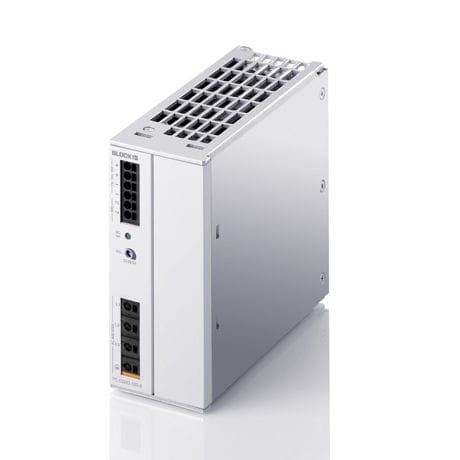

AC/DC power supply PC 3AC series
adjustableswitchingthree-phase

AC/DC power supply - PC 3AC series - Block Transformatoren-Elektronik - adjustable / switching / three-phase
AC/DC power supply - PC 3AC series - Block Transformatoren-Elektronik - adjustable / switching / three-phase
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
adjustable
Technology
switching
Network
three-phase
Mounting
DIN rail
Other characteristics
robust
Input voltage

Max.: 500 V

Min.: 400 V

Output voltage

24 V

Current

10 A, 20 A

Description

General Data Nominal input voltage: 3 x 400 ‑ 500 Vac Nominal output voltage: 24 Vdc, 48 Vdc, 60 Vdc Nominal output current: 10 ‑ 40 A Ambient temperature ‑25 °C to +70 °C Protection index IP 20 Advantages Stabilised and adjustable output voltage Fast tripping of conventional circuit breakers DC OK signalling Parallel operation Push‑in terminals Robust DIN rail mounting Resistant to transient overvoltages up to 4 kV Optional with 50 % Power Boost
