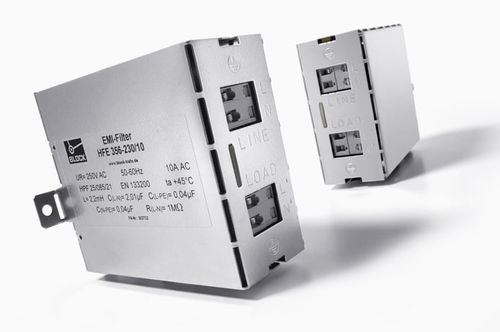

Low-pass electronic filter HFE 356passiveRFIscrew-in
Add to favorites
Compare this product
Characteristics
- Bandwidth
- low-pass
- Type
- passive
- Other characteristics
- RFI, screw-in, single-phase, DIN rail
- Frequency
Max.: 60 Hz
Min.: 50 Hz
- Voltage
250 V
- Primary current
1 A, 3 A, 6 A, 10 A
Description
General Data
Rated voltage 250 Vac
Voltage range 0 ‑ 250 Vac
Rated current 1.00 ‑ 16.00 A
Leakage current 2 mA
Degree of protection IP 20
DIN Rail mounting
Advantages
For general requirements
Low leakage current
Single‑stage filter concept
Efficient filter effect against line‑bound interference emissions
Increase in the interference immunity of the connected consumer
