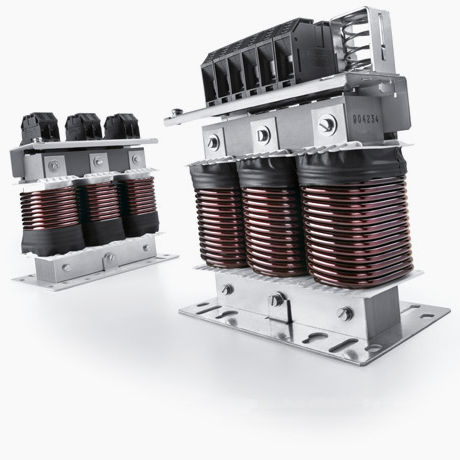

Line reactor MR3 400 series ACthree-phasemotor
Add to favorites
Compare this product
Characteristics
- Technology
- limitation
- Electrical characteristics
- AC, three-phase
- Applications
- motor
- Primary current
2.5 A, 4 A, 6 A, 8 A
- Voltage
400 V
Description
General Data
Rated voltage 3 x 400 Vac
Rated current 2.5 ‑ 61.0 A
For motor rated output 0.75 ‑ 30 kW
For switching frequencies of 3 to 8 kHz
Rated frequency from 0 to 50 Hz
Inductance 2.55 ‑ 0.10 mH
Insulation class B
Maximum ambient temperature 40 °C
Degree of protection IP 00
Advantages
High damping of edge steepness
High damping of inverter switching frequency
Reduction of leakage current at low construction volumes
Long shielded cable lengths possible
High efficiency
Very good corrosion protection and low noise thanks to vacuum impregnation
