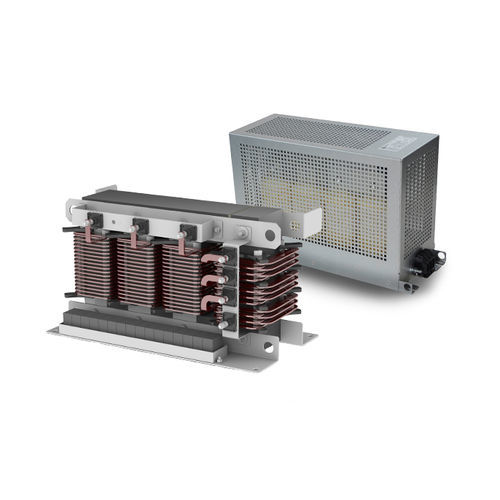

Sine wave electronic filter SF4-CE110-500-0band-passpassivemotor
Add to favorites
Compare this product
Characteristics
- Bandwidth
- band-pass
- Type
- passive
- Other characteristics
- sine wave, motor, common mode, differential-mode
- Frequency
Max.: 150 Hz
Min.: 5 Hz
- Voltage
Max.: 500 V
Min.: 0 V
- Primary current
110 A
Description
General Data
For motor rated output 2.2 - 45 kW
Degree of protection IP 00 / IP 20
For switching frequencies ≥ 4 kHz
Insulation class H
Ambient temperature 14 °F / -10 °C to +113 °F / +45 °C
Benefits
Increase of motor lifetime
Improves conducted and radiated electromagnetic interference (150 kHz - 300 MHz)
Unshielded motor wires can be used
Optimized drive efficiency
Major reduction of leakage currents
Elimination of bearing currents
Applications
Sine filter for the suppression of differential mode interference and common mode interference.
