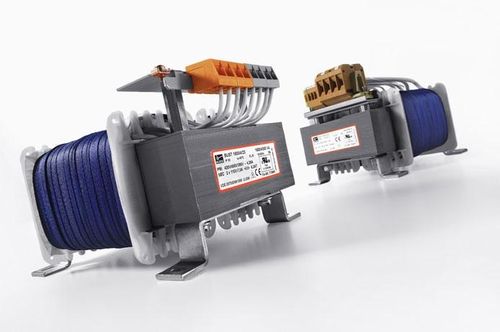

Isolation transformer BUST seriescast resinsingle-phasethrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- cast resin
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Other characteristics
- control, vacuum impregnation, compact
- Electric power
Max.: 10 W
Min.: 1 W
- Primary voltage
Max.: 500 V
Min.: 230 V
- Secondary voltage
Max.: 230 V
Min.: 24 V
Description
General Data
Rated input voltage 230 ‑ 500 Vac
Rated output voltage 24 ‑ 230 Vac
Rated power 1000 ‑ 10000 VA
Insulation class B
Maximum ambient temperature 40 °C
Efficiency up to 96.8 %
Degree of protection IP 00
Advantages
High performance for the volume thanks to compact design
Primary side ±5 % tappings for voltage adjustment
Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation
Contact protected screw connection terminals complying with UVV BGV A3
Low height
