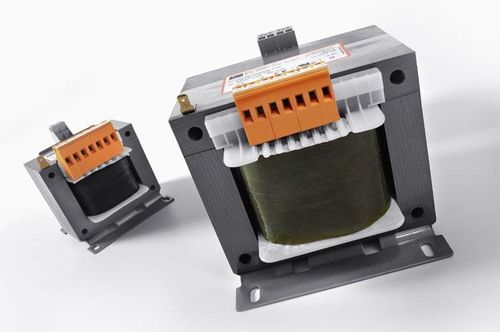

Isolation transformer STU seriescast resinsingle-phasethrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- cast resin
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Other characteristics
- safety, control, vacuum impregnation, compact
- Electric power
Max.: 2.5 W
Min.: 0.063 W
- Primary voltage
Max.: 540 V
Min.: 210 V
- Secondary voltage
Max.: 230 V
Min.: 24 V
Description
General Data
Rated input voltage 210 ‑ 540 Vac
Rated output voltage 24 ‑ 230 Vac
Rated power 63 ‑ 2500 VA
Insulation class B
Maximum ambient temperature 40 °C
Efficiency up to 95 %
Degree of protection IP 00
Advantages
Universal input voltages 210 to 540 Vac
Very good switch‑on behaviour thanks to reduced starting currents
High performance for the volume thanks to compact design
Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation
Contact protected screw connection terminals complying with UVV BGV A3
Simple mounting thanks to robust metal footplate with oval slots
