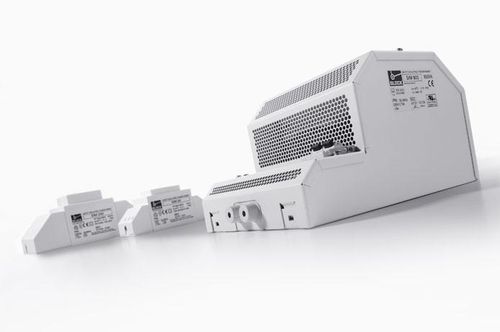

Isolation transformer SIM seriesencapsulatedthrough-holesafety
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Mounting
- through-hole
- Other characteristics
- safety
- Electric power
Max.: 0.8 kVA
(1.0877 hp)Min.: 0.06 kVA
(0.0816 hp)- Primary voltage
230 V
- Secondary voltage
12 V
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 2 x 12 Vac
Rated power 60 ‑ 800 VA
Insulation class A
Maximum ambient temperature 40 °C
Efficiency up to 95 %
Degree of protection IP 20
Advantages
Integrated short circuit and overload protection
Double output voltage for series or parallel connection
Very good moisture protection and low noise thanks to XtraDenseFill resin encapsulation (up to 300 VA)
Screw terminals under cover with strain relief
