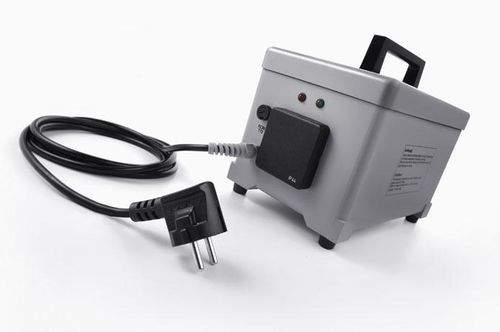

Power auto-transformer E-JET seriescast resinfor electronicssingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- cast resin
- Applications
- for electronics
- Electrical characteristics
- single-phase
- Mounting
- floor-standing
- Other characteristics
- closed
- Electric power
Max.: 1 kVA
(1.3596 hp)Min.: 0.25 kVA
(0.3399 hp)- Primary voltage
230 V
- Secondary voltage
110 V
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 110 Vac
Rated power 250 ‑ 1000 VA
Insulation class A
Maximum ambient temperature 40 °C
Efficiency up to 96 %
Degree of protection IP 22
Advantages
Electronic potential monitoring by not connecting the output voltage until the protected contact plug is inserted correctly
Integrated short‑circuit and overload protection
Very high efficiency
Very good moisture protection and low noise thanks to XtraDenseFill resin encapsulation
Carry handle, mains cable with safety plug, socket NEMA5‑15 (USA) for portable application
