- Electricity - Electronics
- Electronic Component
- Power transformer
- Block Transformatoren-Elektronik

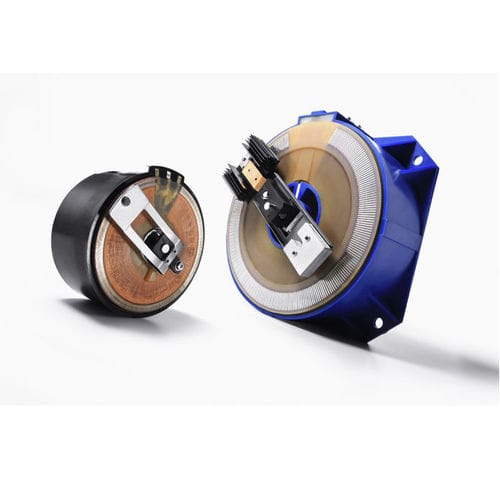

Power transformer ESS seriesencapsulatedplastic housingvariable
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Mounting
- plastic housing
- Other characteristics
- variable, AC, toroidal
- Primary voltage
230 V
- Secondary voltage
Min.: 0 V
Max.: 250 V
- Primary current
Min.: 0.8 A
Max.: 20 A
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 0 ‑ 250 Vac
Rated current 0.8 ‑ 20 A
Insulation class B
Maximum ambient temperature 45 °C
Degree of protection IP 00
Advantages
Stepless adjustment of the AC voltage from zero to the maximum value
Self‑cleaning of the exposed contact tracks
4‑point flange mounting
Rotary knobs and scales optionally available
Catalogs
No catalogs are available for this product.
See all of Block Transformatoren-Elektronik‘s catalogsOther Block Transformatoren-Elektronik products
Transformers
