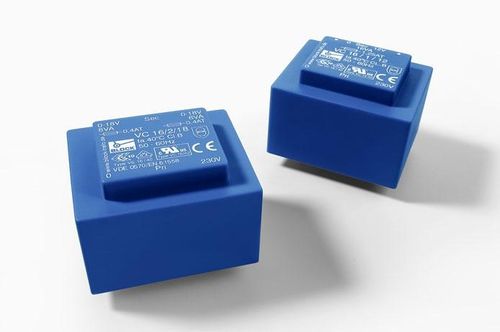

Power transformer VC seriesencapsulatedsingle-phasefor printed circuit boards
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Electrical characteristics
- single-phase
- Mounting
- for printed circuit boards
- Electric power
Min.: 0.0032 kVA
(0.0044 hp)Max.: 0.016 kVA
(0.0218 hp)- Primary voltage
230 V
- Secondary voltage
6 V, 8 V, 9 V, 12 V
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 6 ‑ 2 x 24 Vac
Rated power 3.2 ‑ 16 VA
Insulation class B
Maximum ambient temperature 40 ‑ 60 °C
Efficiency up to 76 %
Degree of protection IP 00
Advantages
Minimum size at high output
Also with double output voltage for series or parallel connection
Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation
Coil shell in 2‑chamber technology
Self‑extinguishing potting material
