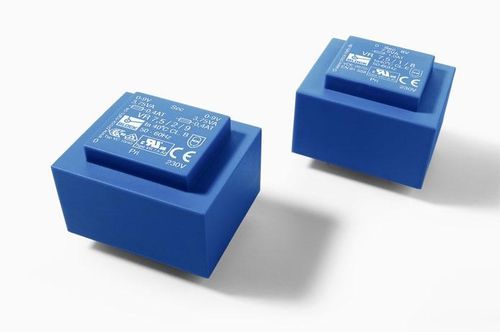

Power transformer VR seriesencapsulatedsingle-phasefor printed circuit boards
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- encapsulated
- Electrical characteristics
- single-phase
- Mounting
- for printed circuit boards
- Electric power
Max.: 0.03 kVA
(0.0408 hp)Min.: 0.0045 kVA
(0.0061 hp)- Primary voltage
230 V
- Secondary voltage
8 V, 9 V, 12 V, 15 V
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 8 ‑ 2 x 18 Vac
Rated power 4.5 ‑ 30 VA
Insulation class B
Maximum ambient temperature 40 °C
Efficiency up to 84 %
Degree of protection IP 00
Advantages
Minimum size at high output
Also with double output voltage for series or parallel connection
Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation
Coil shell in 2‑chamber technology
Self‑extinguishing potting material
Space saving installation thanks to additional screw mounting in the base plate
