Power transformer FL series
cast resinsingle-phasefor printed circuit boards

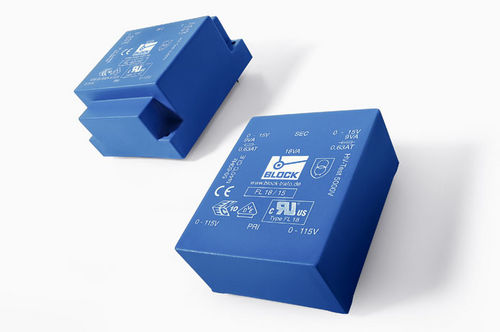

Power transformer - FL series - Block Transformatoren-Elektronik - cast resin / single-phase / for printed circuit boards
Power transformer - FL series - Block Transformatoren-Elektronik - cast resin / single-phase / for printed circuit boards
Add to favorites
Compare this product


Characteristics

Type
power
Configuration
cast resin
Electrical characteristics
single-phase
Mounting
for printed circuit boards
Other characteristics
low-profile
Electric power

Max.: 0.052 kVA
(0.0707 hp)

Min.: 0.002 kVA
(0.0027 hp)

Primary voltage

115 V

Secondary voltage

5 V, 6 V, 8 V, 9 V

Description

General Data Rated input voltage 2 x 115 Vac Rated output voltage 2 x 5 ‑ 2 x 24 Vac Rated power 2 ‑ 52 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 81 % Degree of protection IP 00 Advantages Minimum size at high output Low height Double input voltage for series or parallel connection Double output voltage for series or parallel connection Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material
