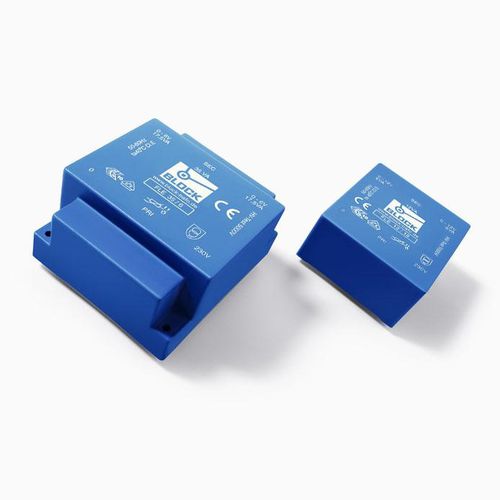

Power transformer FLE series
cast resinsingle-phasefor printed circuit boards

power transformer
power transformer
Add to favorites
Compare this product


Characteristics

Type
power
Configuration
cast resin
Electrical characteristics
single-phase
Mounting
for printed circuit boards
Other characteristics
short circuit-proof, low-profile
Electric power

Max.: 0.035 kVA
(0.0476 hp)

Min.: 0.004 kVA
(0.0054 hp)

Primary voltage

230 V

Secondary voltage

6 V, 8 V, 9 V, 12 V

Description

General Data Rated input voltage 230 Vac Rated output voltage 2 x 6 ‑ 2 x 18 Vac Rated power 4 ‑ 35 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 78 % Degree of protection IP 00 Advantages Minimum size at high output Low height Integrated overload protection using PTC in the input Double output voltage for series or parallel connection Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material
