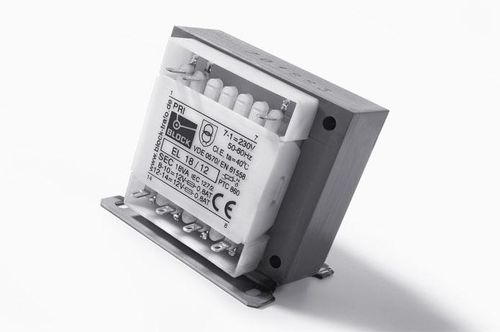

Isolation transformer EL seriescast resinsingle-phasethrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- cast resin
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Other characteristics
- safety, vacuum impregnation
- Electric power
Max.: 0.1 kVA
(0.136 hp)Min.: 0.075 kVA
(0.102 hp)- Primary voltage
230 V
- Secondary voltage
6 V, 18 V
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 2 x 6 ‑ 2 x 18 Vac
Rated power 7.5 ‑ 100 VA
Insulation class E
Maximum ambient temperature 40 °C
Efficiency up to 88 %
Degree of protection IP 00
Advantages
Solder tab for free wiring
Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation
Coil shell in 2‑chamber technology
Simple mounting thanks to robust metal footplate with oval slots
