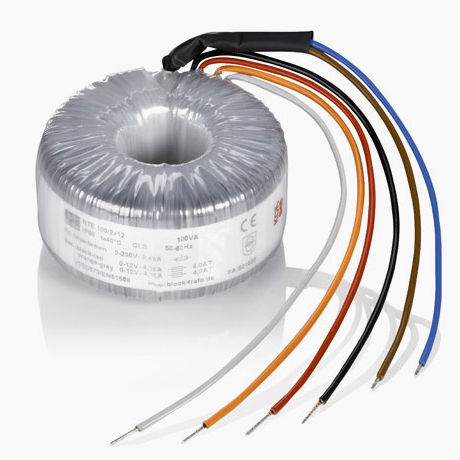

Isolation transformer RTE seriesencapsulatedprotectionsingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Applications
- protection
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Other characteristics
- toroidal
- Electric power
Max.: 0.625 kVA
(0.8498 hp)Min.: 0.015 kVA
(0.0204 hp)- Primary voltage
230 V
- Secondary voltage
12 V, 15 V, 18 V
Description
General Data
Rated input voltage 230 Vac
Rated output voltage 2 x 12 ‑ 2 x 35 Vac
Power 15 ‑ 625 VA
Insulation class B
Maximum ambient temperature 40 °C
Efficiency up to 95 %
Degree of protection IP 00
Advantages
Minimum size at high output
Low weight
Double output voltage for series or parallel connection
Protected against overload by integral temperature fuse
Minimal no‑load losses
Outstanding temperature behaviour thanks to low magnetic leakage field
Very low noise field
