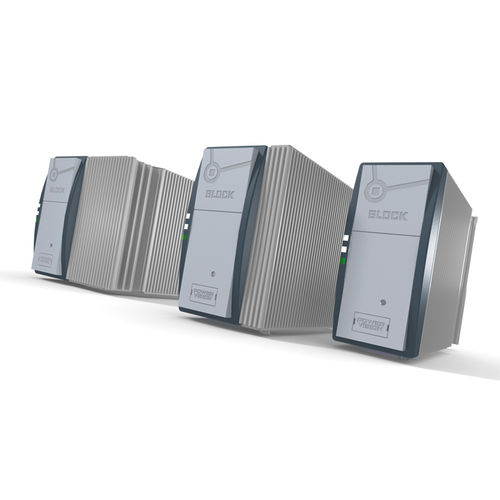

AC/DC power supply PVSE 400 seriesadjustableswitchingthree-phase
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- adjustable
- Technology
- switching
- Network
- three-phase
- Mounting
- DIN rail
- Input voltage
Min.: 400 V
Max.: 500 V
- Output voltage
Min.: 24 V
Max.: 48 V
Description
General Data
Input rated voltage 3 x 400 ‑ 500 Vac
Output rated voltage 24 ‑ 48 Vdc
Output rated current 10 ‑ 40 A
Ambient temperature ‑25° C to +70° C
Efficiency up to 95 %
Protection index IP 20
Advantages
Stabilised and adjustable output voltage
Up to 200 % real power boost for 4 seconds
Top boost to trip miniature circuit breakers
DC OK signalling
Parallel connection option
Service‑friendly spring‑loaded connector system
Can be supplied with active inrush current limiting option
Can be supplied with isolated DC OK signalling function
Panel installation on mounting rails
