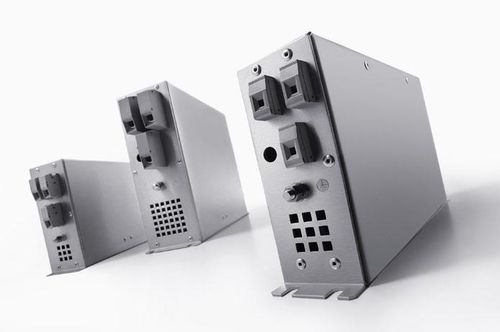

Low-pass electronic filter HFD 210 seriesactiveRFIscrew-in
Add to favorites
Compare this product
Characteristics
- Bandwidth
- low-pass
- Type
- active
- Other characteristics
- RFI, screw-in, AC, three-phase
- Frequency
Max.: 60 Hz
Min.: 50 Hz
- Voltage
Max.: 520 V
Min.: 480 V
- Primary current
Max.: 180 A
Min.: 7 A
Description
General Data
Rated voltage 3 x 480 ‑ 3 x 520 Vac
Voltage range 0 ‑ 3 x 480 ‑ 520 Vac
Rated current 3 x 7 ‑ 3 x 180 A
Leakage current 12.00 ‑ 18.00 mA
Protection index IP 20
Advantages
For enhanced requirements
Two‑stage filter concept
Efficient filter effect against line‑bound interference emissions
Increase in the interference immunity of the connected consumer
