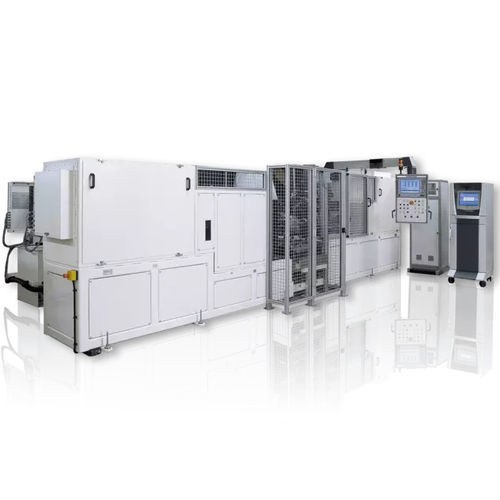

Multi-parameter test stand

fully-automaticroboticfor mechanical drive

The 100% test of the front-cross transmissions is performed at the end of the line. The loading process is fully automated. In addition to the function test, the pre-selectable test programs include the noise and synchronous test. •Robot controlled connector mounting •Noise recording system with three sensors General •Automated loading •Coded interchangeable parts •Pre-selectable test programs •Automated gear-changing •Recording of shift values •Objective noise evaluation •Tests in lot sizes Tests •Function test •Noise test •Synchronous test Equipment •Noise recording system with 3 sensors •Shifting robot (3 units/test stand): 1 x for NSG-transmissions, 1 x for Chr-transmissions, 1 x for TSG-transmissions •Version-conditioned interchangeable parts for clamping and adapting input and output are fitted manually •Visual display system for test stand control •System for test process control and data recording •Kuka robot for adapting the start/stop connector
