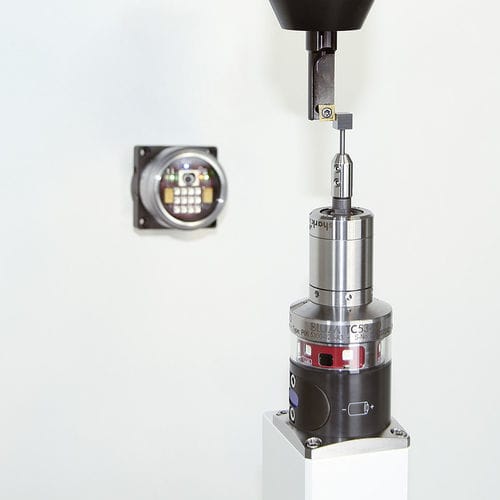

Modular probe TC53-20

tool settinginfraredfor machine tools

Special tool measurement systems for turning machines and turning/milling centres for adaptation to customer-specific tasks. Precise tool setting and monitoring using innovative, face-geared shark360 measuring mechanism with optoelectronic switch signal generation. Wear-free, optoelectronic signal generation •The trigger signal is generated via shading of a miniature light barrier •Enables much higher measuring speeds and accuracy than with conventional probes •Wear-free with long-term stability Unique, patented shark360 measuring mechanism •High-precision, face-geared measuring mechanism •Defined deflection direction and constant deflection forces •Extremely fast measurements •Maximum measuring accuracy even with off-centre probing Reliable and proven transmission technology •TC53-20: Infrared Transmission •TC63-20: BRC Radio Technology •DUO-Mode: Sequential use of 2 infrared measuring systems with one receiver •Sequential use of up to 6 radio measuring systems with one receiver •TWIN mode: Simultaneous use of 2 radio measuring systems on one machine •Very long battery life
