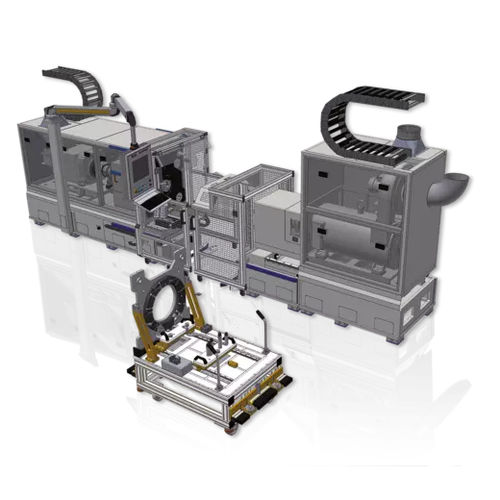

Automatic test stand

for mechanical drivepneumaticprocess

The 100% test of the heavy truck transmissions is performed at the end of the line. The loading process is carried out using a trolley. In addition to the function and noise test, the test programs include the synchronous test. •Automated oil filling & draining •Special shifting robot for heavy-duty applications •Noise measuring system with pneumatic feeding axis Tests •Automated function test •Noise test •Synchronous test Equipment •Production test stand with two motors •Visual display system for test stand control •Computer system for test process control and data recording •Noise recording system: 2D-Servoaxis positioning system with constant-pressure pneumatic feeding axis •Special shifting robot with 1 linear axis and 1 rotation axis for heavy-duty applications •Version-conditioned interchangeable parts for clamping and adapting input and output possible •Automated oil filling and draining during the test process
