Torque test stand

speedtemperatureautomatic

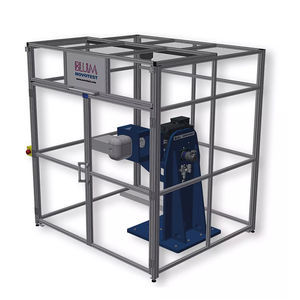

This test stand is intended for testing angular transmission units and can execute various test programs in both automatic and manual mode. The components of the test stand are mounted on a machine bed and can be used in a T arrangement, a 90° arrangement or a linear arrangement as required. •Total view •Possible T arrangement of the brake units Tests •Torque •Spindle speed •Angle deflection •Oil temperature in the specimen Equipment •Machine bed on vibration-insulating machine shoes •Safety housing •Driveline with safety coupling •Two torque measuring shafts •Braking system
