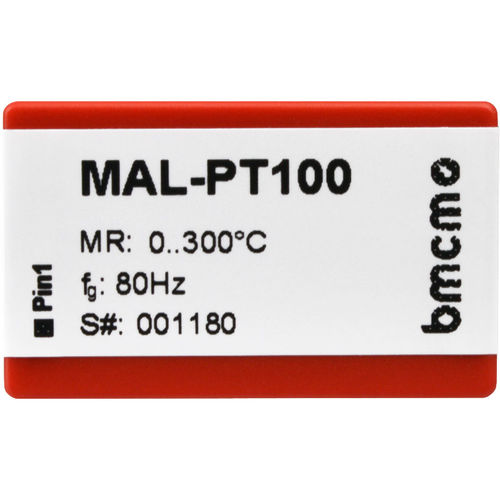

Signal amplifier MAL-PT100

measuringacquisitionelectronic

FEATURES - size: 24-pin DIL IC - 80Hz bandwidth - differential input - measured quantities: temperature (PT100), -60..300°C - linearization - sensor supply 1mA - output filter 6dB/oct. PERFECTLY CONDITIONED. TEMPERATURE. Resistance signals of a PT100 sensor can optimally be adjusted to the input of a PC data acquisition system with the miniature measuring amplifier MAL-PT100. A perfect solution for temperature measurements in the range of 0..300°C. A 1mA sensor supply is provided for connected sensors. MINIMUM SIZE. GREAT PERFORMANCE. SMALL PRICE. The miniature format of the MAL-PT100 is ideal to realize measurement applications even if the installation is in problematic locations. Despite the small size, the measuring amplifier features great functionality. All this at a reasonable price. RESISTANCE MEASUREMENT. LINEARIZATION. AMPLIFICATION. The MAL-PT100 measures the resistance of a PT100 sensor. As the signal values of the sensor are not linear, the MAL-PT100 takes care of linearization providing a proportional voltage in the range of 0..5V at the output.
