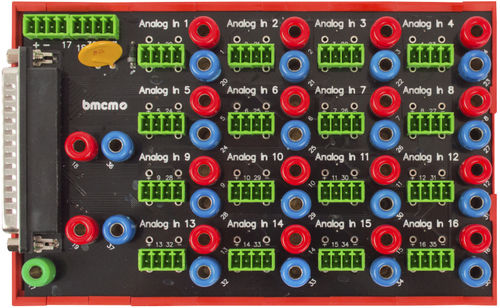

Board connector ZU37CB

FEATURES - connectors for 16+4 channels - 37 jacks for 4mm banana plugs, 18 terminal connectors (4-pin) - connect to DAQ system at D-Sub 37 male - sensor supply for 16 channels GET CONNECTED. WITH STANDARD. The Euro-card sized connector board ZU37CB is the solution for comfortably connecting sensors and voltage signals to a PC measurement system. The integrated plug connector technologies are widely used in industry and connection technology. 16 ANALOG INPUTS. 4 EXTRA LINES. The ZU37CB features 16 connectors for analog inputs. Additional lines (e.g. analog outputs) can be attached to 4 further plug connectors. Terminal blocks (ZU4ST, packaging unit: 4pcs.) are available for the two 4-pin terminal connectors as accessory. SENSORS SUPPLIED WELL. Providing a supply voltage allows for the excitation of sensors connected to the 16 analog input terminals of the ZU37CB. The supply level (low-voltage, <60V) can be chosen arbitrarily according to the requirements of the sensors.
