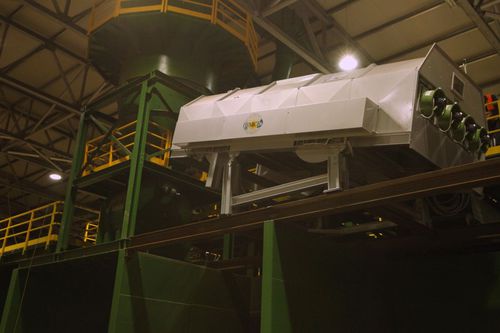

Ballistic separator

paperfor bulk materialsprocess

Separator of simple use and regulation with very low maintenance. Separation of hollow bodies from flat bodies. Film, paper sheets, flat materials will exit from the above part, the materials inferior to 30x30 mm (or following the dimension of the mounted grid) will fall directly underneath, while the biggest materials will follow to the next machine. An ulterior setting of the flux can be made by the variation of the oscillation intensity, inclination of the screening surface, regulation of the pushing flux. Characteristics: - screening grids interchangeable and auto-cleaning - centralized system for bearings lubrication - oscillating bearings with permanent lubrication - fast and convenient disassembly system for bearings, very low intervention time compared to other kind of separators - separator with a singl oscillating table
