Trailer-mounted crane BMF 850boomforestrylifting
Add to favorites
Compare this product
Characteristics
- Configuration
- trailer-mounted
- Structure
- boom
- Operating environment
- forestry
- Applications
- lifting
- Other characteristics
- hydraulic
- Lift capacity
515 kg, 1,360 kg
(1,135.4 lb, 2,998.3 lb)- Working height
8.5 m
(27'10" )
Description

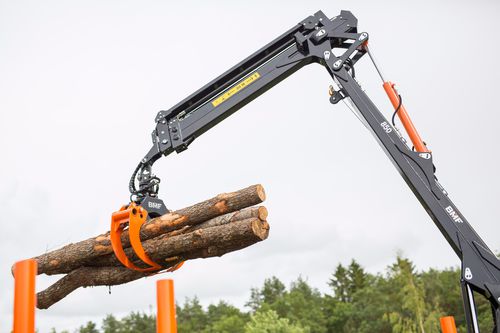

Trhee-point connection crane with 8,5m max. reach
Our crane with trhee-crane connection BMF 850 comes with wide-angle joint and double telescope. The high quality constructions and the innovative design will make it to your favorite forest machine.
Please check out our wide range of accessories.
Product info:
Maximum reach, m8,5
Lifting torque, kNm, gross
68
Lifting power on 4m without grapple and rotator, kg1360
Lifting power of full reach without grapple and rotator, kg515
Grapple, m20,24/0,27
Rotator4t
Slewing torque, kNm17
Slewing cylinders, pcs4
Boom rotation, °370
Working pressure, bar 190
Hydraulic pump capacity, l/min40-80 l/min
Support leg FD
Wide angle +
Telescopedouble
Total weight without leg, kg1095
Hydraulic valve, standardOn / Off 80 l
Catalogs
BMF A4-16 ENG Lisako preview
16 Pages
