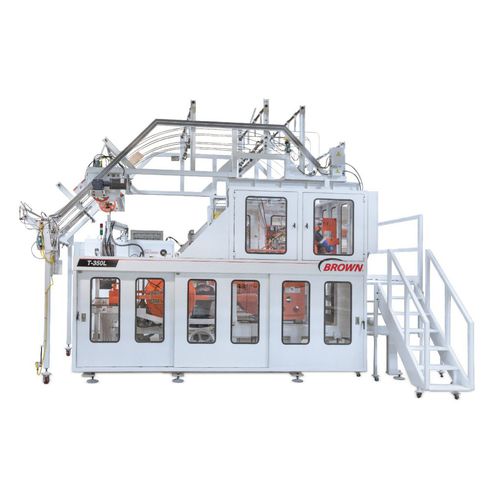

Mechanical press Brown® T series L | LP | LDP

cuttingtrimminghorizontal

T-Series Horizontal Trim Press is the industry standard multipurpose press equipped with a multitude of cutting edge features to achieve precise trimming, longer tool life, ease of maintenance and faster changeover times. T-Series Models incorporate precision timed flywheels to the main drive shaft for optimum platen parallelism. The Brown T-Series press offers linear bearings for longer wear life. A side load feature allows tools to be changed from either side which is faster and provides greater plant layout flexibility now and in the future. See the reverse side for sizes and options of these three models: L – Entry level horizontal trim press – strong consistent performer LP – Extended platen height with progressive trim promotes increased die life LDP – Increased platen height combined with extended stroke, ideal for deep draw applications Options Quick-Change Tool Packages Tool Carts & Die Set Roller/Elevator Systems EZ-Adjust Stroke (Patented) Fine Adjust Connecting Arms (Patented) “Drop-Away” Connecting Arm Release (Patented) “Neutral Link” Linear Guided Counterbalance (Patented) Servo Flex Feed or Servo Nip Wheel Feed Systems Treadle Lift System Servo Treadle System Quick-Change Feed & Canopy Guides Servo Ejector with Count/Eject Capabilities Product Handler Interface Trim Press Tonnage & Temperature Monitoring 65 Kilo Amp Short Circuit Rating UL, CE, CSA & HSE Approvals International Voltages Available
