Roll-fed thermoformer GN800
for food packagingfor medical packagingindustrial

Roll-fed thermoformer - GN800  - BMG - for food packaging / for medical packaging / industrial
Roll-fed thermoformer - GN800  - BMG - for food packaging / for medical packaging / industrial
Add to favorites
Compare this product


Characteristics

Type
roll-fed
Applications
for food packaging, for medical packaging
Other characteristics
industrial, high-speed, with integrated punching
Film width

910 mm
(36 in)

Maximum depth of draw

150 mm
(6 in)

Forming area x

830 mm
(33 in)

Forming area y

570 mm
(22 in)

Description

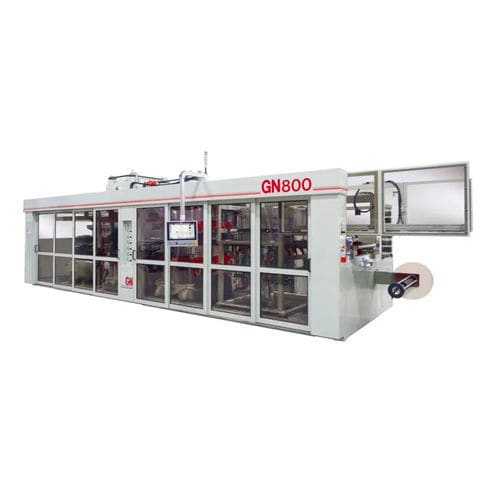

The GN800 is a high-speed, plug-assist, form-cut-stack thermoformer with optional punch station. This innovative GN product uses fully-integrated servo controls throughout–including the movable top and bottom platens for precise forming and cutting of parts. With the input of customers and toolmakers, GN developed the GN800 to provide cost-effective and high-speed part production. The most distinctive features of the GN800 are the high degree of automation as well as the fast tool change system, reducing downtime for machine reset. Capable of forming CPET, PET, PP, HIPS, OPS, PVC and more blends including CPLA, PLA and other biodegradable materials, the GN800 is extremely flexible and can be combined with scrap grinders, padding systems and inline packing systems to complete your production line. High-efficiency heaters Increased tonnage in both forming and cutting stations In-mould cut capability Operator-friendly HMI with integrated diagnostics and remote connection Multi-purpose thermoformer for food, medical, industrial and other special applications Options Stacking systems Punching station Material pre-heating system Motorized material unwind unit (required when no pre-heater is used) product lowering system

VIDEO
