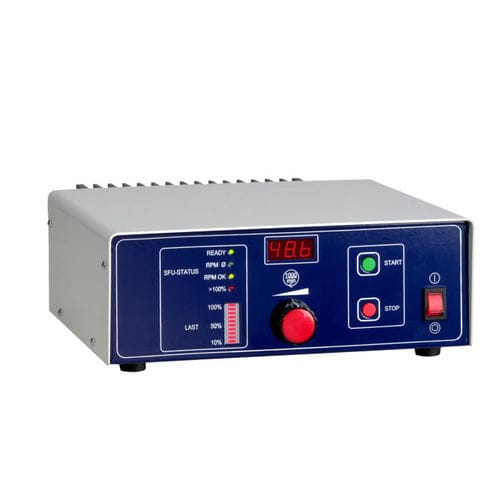

Table-top frequency converter SFU 0300for motor spindleIP20high-frequency
Add to favorites
Compare this product
Characteristics
- Mounting
- table-top
- Applications
- for motor spindle
- Protection class
- IP20
- Other characteristics
- high-frequency, integrated braking resistor
- Power
1,500 W
- Intensity
5 A, 9 A
- Output frequency
1,667 Hz
Description
• Frequency converter for sensorless operation of AC spindles
• Rotational speeds up to 120000 rpm (2000Hz)
• Continuous output power up to 1500VA / S1-100%
• Galvanic seperation of all spindle control cables from mains network
• on board chopper resistor
The power solution for all kinds of spindles
Highest efficiency in spindle drive with lowest power losses in spindle, due to adjustable intermediate voltage circuit
Powerful spindle drive with high output power reserves
High flexibility because of various I/Os and enclosure options
Oversized on-board chopper-resistor for powerful braking and shortest cycle times
