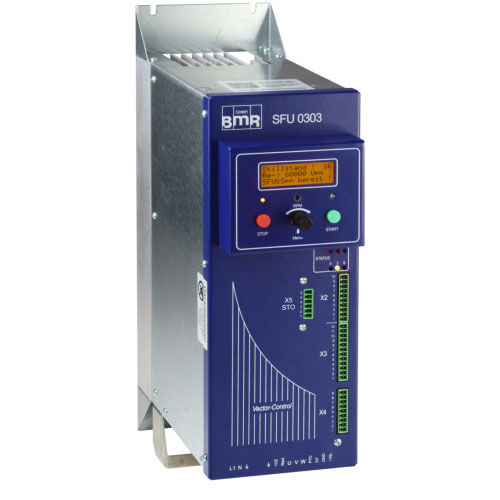

Frequency converter with safety function SFU 0303STO

digital displayPWMdesktop

SFU 0303STO • The power solution for all kinds of spindles • Highest efficiency in spindle drive with lowest power losses in spindle, due to adjustable intermediate voltage circuit and 28,5 kHz PWM • Powerful spindle drive with high output power reserves • High flexibility because of various I/Os and enclosure options • Oversized on-board 200W chopper-resistor for powerful braking and shortest cycle times This frequency converter offers an extended range of safety functions and thus complies with the requirements of EN 60204-1 and IEC 61800-5-2. In detail, the inverter is equipped with a Safe Torque Off (STO), a safety function to prevent unexpected start-up. This STO function corresponds to stop category 0. TECHNICAL DATA Supply connection Continuous output power Output voltage Continuous phase current Peakphase current 115V, 50Hz, 1PH...230V, 50Hz, 1PH 115V net: : max. 2.000 VA / Sl-100% 230V net: : max. 3.000 VA / Sl-100% 115V net: : max. 110V 230V net: : max. 220V 11A 18A Over current Output frequency Motor connection Spindle characteristics to be set up for max. 20s AC: 4.000Hz / 240.000 rpm DC: 1.667Hz / 100.000 rpm desktop: : 9-pin:U,V. W, PTC, FP, SGND, 2* PE screwclamps 4mm* SSE: : 10-pin: PE. U,V,W, PTC, FP, SGND, pluggable screwterminals 4mm* 19": : 9-pin: U,V,W, PTC, FP, SGND, 2* PE screwclamps 4mm* max. 16, stored internally Spindle sensor inputs Control inputs Control outputs speed sensor, PTC, KTY, PT1000 2 Analog: 6 Digital: 2 Analog: 5 Digital: 1 Digital: 0-10V 0-24V 0-10V free to be setup for pulse inhibitor relay outputs, 24VDC/1000mA, 125VAC/500mA
