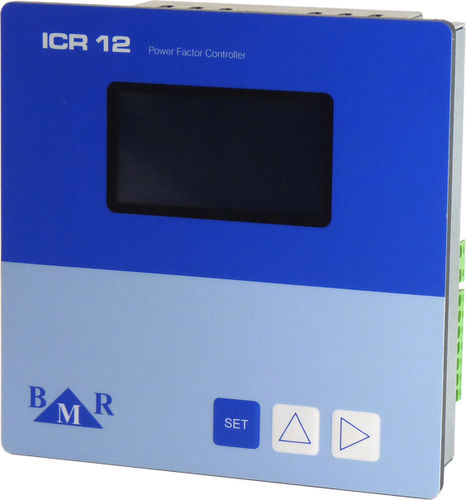

Digital power factor controller ICR12

Impulse power factor controller ICR is designed for usage in applications where load variation between working times is too high to be measured by measuring current transformer. ICR controller is also solution for unbalanced systems where there is possibility to take energy impulses directly from utility static energy meter. Typical application for ICR controller is PFC for photo-voltaic power plants. Device function Controller ICR is reading, directly or via optical separation unit, pulses from static energy meter. Base on the pulse weight and time distance between particular pulses, controller calculates active and reactive powers. At low signal frequency of measuring pulses, controller corrects power values depending on running time. OLED graphic display Bright and fully graphic OLED display gives another dimension to power factor controller. It provides monitoring features to give easy understanding overview about the system situation. Internal power supply Controller has builtin 12V DC power supply for supplying the energy meter pulse outputs. Internal power supply is fully metallically separated from the controller. Smart decompensation system ICR controller is solution for decompensation of capacitive loads such as photovoltaic power plants or system with long cables. Controller is tuning decompensation reactor by capacitor steps in order to obtain the needed reactive inductive power for capacitive load decompensation. It brings easier and cheaper PFC construction by using only one decompensation reactor.
