Electrical network analyzer PLA44RGP

power qualityportableIP54

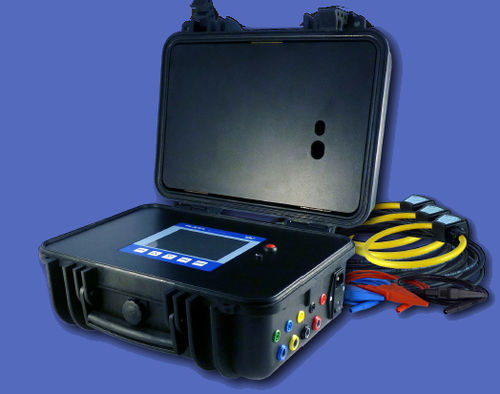

The portable power quality analyser's design is based on the PLA44 power quality analyser. This portable variant is also following the panel version the standard EN 61000-4-30 class A for measuring power quality in LV and MV systems. Four voltage and current inputs allow PLA44RGP to be used in various applications. Current inputs made for Rogowski coils make connections to the measuring point quickly and easily. A plastic suitcase with an IP rating IP54 and high mechanical endurance make the PLA44RGP analyser able to take measurements in the harshest conditions of any kind of industry. An internal battery with a large capacity lets the PLA44RGP operates even with loss of power supply. The controlling board charges the battery automatically at presence of supply voltage. Measured parameters PLA44RGP measures the same parameters with the same accuracy as the PLA44 power quality analyser. For exact values please refer to the table of measured parameters of the PLA44. By default the PLA44RGP does not measure temperature. On the request the temperature sensor can be optionally delivered. Flash memory The portable power quality analyser PLA44RGP has 1 GB of internal non-volatile FLASH memory for recording measured parameters, events, transients and energy values. The memory is working in FIFO mode so when the memory is full, the oldest data is written over with the newest. For an application when the 1 GB memory size is not enough, it is possible to request an instrument with a larger memory. Internal clock backup
