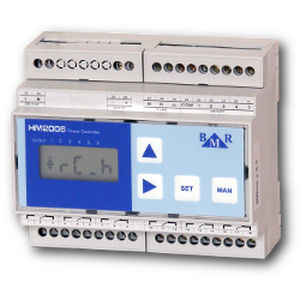

Digital power controller HM2006

three-phaseDIN railmodular

HM2006 controller is designed for electrical power peak regulation of large consumers. Regulation is optimized according to defined curve and set regulation or technical maximum. If trend of average load_profile demand verges to exceed the set demand value, particular stages of electrical loads are being disconnected. In the case that the trend verges under the set level, controller is reconnecting disconnected circuits. Controller has 5 inputs, which are used for energy meter pulses of +P, +Q, P, Q and synchronization impulse. One input can be used for tariff indication. Controller is normally connected to the energy meter pulse outputs via separation unit. Controller outputs are realized by 6 changeover contacts 3A/250VAC which control mechanical contactor circuits of defined electrical loads.
