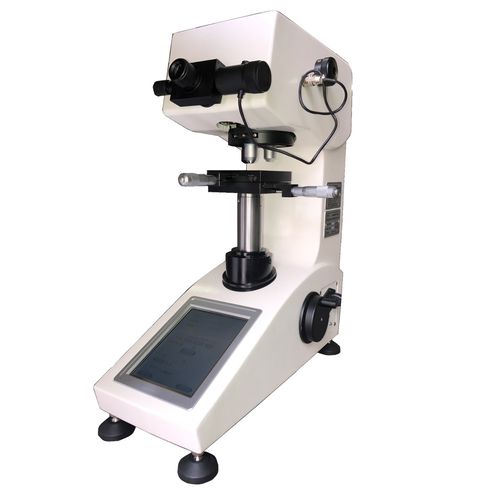

Micro Vickers hardness tester MICROBUL 1000-DN

benchtopautomaticwith PCT touch screen

Vickers Test methods:HV0.01,HV0.025,HV0.05, HV 0.1, HV 0.2, HV 0.3 ,HV 0.5,HV 1 Test force unit:gf,mN Test Force Options :Chosen by test force transformation handwheel, choose a good power displayed on the touch screen Load Control:Automatic (loading / dwell / Unloading) Dwell time:5-99(1sec is increment) Test model:HV/HK Hardness value:Automatic display manual measuring Optical system:10×,40×(test) Eyepiece:10× Total Magnification:100×(observation),400×(test) Test range:200μm Resolution:0.01μm Touch screen:8 inch​ XY Stage table:Size:100×100㎜-Travel distance:25×25㎜-Resolution:0.01mm Light Brightness:stepless adjustable Light Source:5V/3W LED Loaded motor:2.5W,220V AC,4rpm Power Supply:AC220V,60/50Hz Machine power consumption:≤20W Machine dimensions (mm):200x550x500 Case dimensions (mm):400x630x840 ​Standard Accessories Weight Axis: 1 PC Weights: 6 PCS Digital eyepiece: 1 PC X-Y Test Table: 1 PC Screwdriver: 2 PCS Regulating Screw: 4 PCS Level: 1 PC HV1 Test Block: 1 PC Power Cable: 1 PC USB Flash Disk: 1 PC Calibration Certificate: 1 PC Manual: 1 PC Cover: 1 PC Spare fuse: 2 PC
