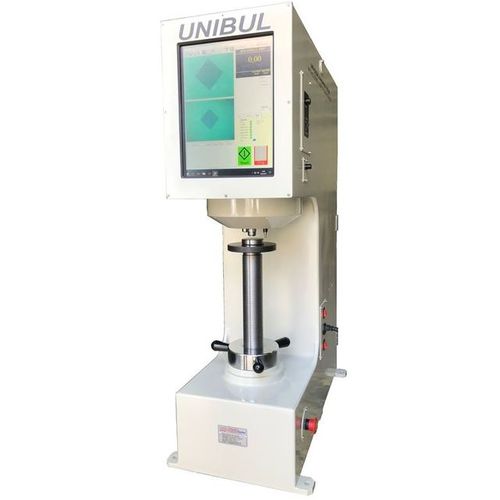

Rockwell hardness tester UNIBUL

BrinellVickersbenchtop

Rockwell, Rockwell Superficial Brinell & Vickers Hardness Tester With Closed Loop Technology & Touch Screen Technical Specification Pre-load( kgf ): 3, 10 Load selection: Automatic Test methods:Rockwell, Rockwell Superficial, Brinell & Vickers Load application:Automatic Throat:180 mm Machine dimensions:1075x 750 x 320 mm Case dimensions:1500 x 1000 x 500 mm Optical System:Digital camera Power:220 V, 50Hz Language: English and turkish (german is vey soon) Standart Accssories Rockwell Diamond cone indenter:1 Vickers Diamond pyramide indenter:1 1/16" ball indenter: 1 2.5mm ball indenter:1 HRC test block:1 HRB test block:1 HB 2.5 / 187.5 Brinell test block:1 Flat testing table:1 V anvil for round parts:1 Wooden case for accessories:1 Allen spanners:1 Operational Manual:1 Digital Camera:1 Lens 2,5 X:1 Lens 5 X:1 Lens 10 X:1 Closed-loop system: 1 Video Imaging: 1 Windows based: 1 15” Full Colour Touch screen:1 Features of OPTOBUL Software Test methods, name of customer and user, part no (automatic when required), part name, upper and lower tolerances, mean value, clearing records according to month and part number, conversions, very sensitive testing using up-down keys on screen when required, universal serial bus (USB) RS 232 output, printing reports (ball indentation view can also be printed out), graphic, standard deviation, user calibration, factory settings, internet connection, user friendly
