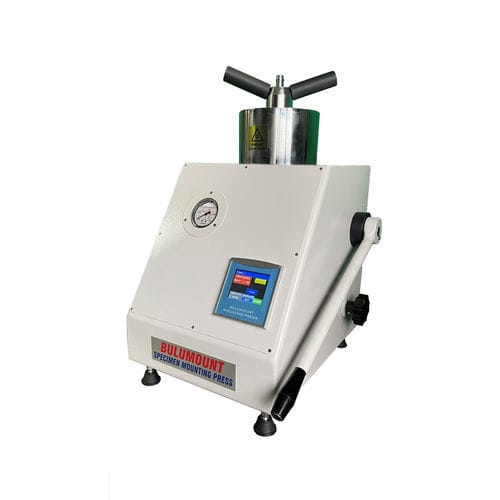

Hydraulic mounting press BULUMOUNT 1

automatic

Technical Specifications Standart mold assembly: 1" - 1,25" - 1,5" - 2" (mm Ø 25, Ø 30, Ø 40, Ø 50) Machine dimension: 530x660x630 mm Case dimension: 590x690x830 mm Weight (net/gross):65/95 kg Mains:220V-50Hz Mold heater capacity:1250 Watt Max. Hydraulic system pressure:250 bar Entering heating, cooling & preheating values Manual cooling, alarm indicator for cycle completion Fast & easy operation for inserting the sample and powder as well as extracting mold Standart Accessories Mold assembly:1 Phenolic powder:1 Pipe for water source:1 1.Description Specimen Mounting Pres Direct reading pressure gauge. Manual hydraulic operation. 25,32,38 and 50 mm mold capacity. 1250 Watts mold heating system. By means of digital panel , heating and cooling timing,heating and cooling dwelling, automatic/ manual cooling ,alarm indicator for cycle completion. Fast and easy operation for inserting the sample and powder. Fast and easy operation for extracting the mold. Operation Operation of BULUMOUNT-1 easy to use. IMPORTANT : Before power on, attach water cooling pipe from taping water to solenoid valve. (17 in Fig. 3) Switch on main ON/OFF button (15) located at the rear side of machine. Inserting The Sample And Powder By turning anticlockwise and holding up ,remove the lock nut assembly. (1) Turn the pressure release knob (18 Fig. 1) to clockwise direction and raise the hydraulic cylinder ram by moving pump handle (5 in Fig. 1) up and down driection to apply hydraulic pressure. Place the sample on lower ram surface.Open the pressure release knob (18) by turning anticlockwise direction and bring down the ram of cylinder to bottom position.
