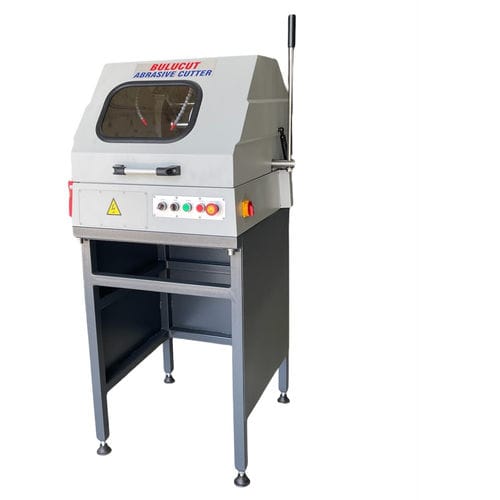

Rotary blade cutting machine BULUCUT 2

abrasive water-jetfor metalsheet metal

Technical Specifications Machine dim’s:650x700 x1600 mm Casedim’s:1000x1000x1600 mm Weight (net/gross):130/ 200 kg Motor: 3 KW, AC, 380 Volt, 3 phase2840 rpm Cutting system: Manual Table dimensions:T-slotted clamping table (370 x 173 x 20 mm) (1 pcs) Clamping devices: Fast cam locking vises (2 pcs) Cutting capacity:90 mm dia Cutting wheel size:250 X 32 X 1,6 (1,5) mm Coolant pump:380 V, 0,12 KW Lamp:24 V,40W,AC Coolant reservoir dim’s:600 x 400 x 300 mm,57 ltr capacity Standart Accessories Abrasive cutter:1 Recirculating cooling system:1 Coolant circulation hoses and clips:1 Arbow wrench and pin:1 Abrasive cutting:5 Wheels, abrasive cutting fluid (5lt):1 Clamping devices:Fast cam locking vises (2 pcs) DESCRIPTION Abrasive Cutter Sturdy table model for sectioning Metals, Ceramic and mineral samples. Corrosion resistance GRP cover with see - through hood. Special Aluminum casted heavy robust base. Easy use twin cam actuated vises for holding samples. All inside parts made from stainless steel or chromium plated steel. Splash proof during cutting. Cooling by two high flow water jets to provide optimum cutting. Cutting action provided by moving motor on specimen. 11 W light illuminator protected from water in specially isolated cover fixed inside the cover to obtain safe and clear illumination on cutting area. Separately mounted recirculation coolant tank with large drain. 57 ltr capacity coolant tank, suitable filtering part provided to filter the slugs formed during cutting.
