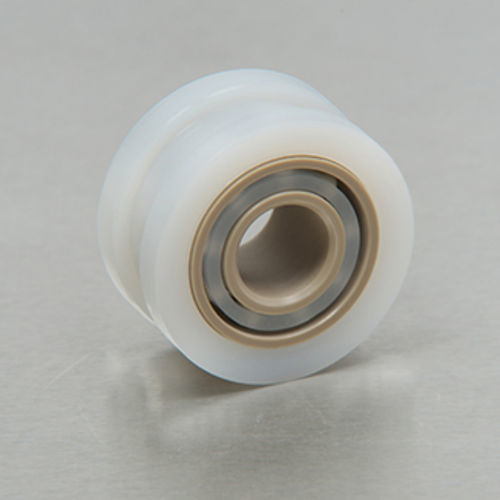

Ball bearing bearing CMU625radialUHMW-PEPEEK
Add to favorites
Compare this product
Characteristics
- Rolling element
- ball bearing
- Configuration
- radial
- Material
- UHMW-PE, PEEK
- Applications
- for corrosive environments
- Other characteristics
- high-temperature, corrosion-resistant, with slot
- Inside diameter
Max.: 25 mm
(0.98 in)Min.: 5 mm
(0.2 in)- Outside diameter
Max.: 50 mm
(1.97 in)Min.: 16 mm
(0.63 in)- Width
Max.: 22 mm
(0.866 in)Min.: 3 mm
(0.118 in)
Description
Our speciality bearings are ideal for use in environments where extreme temperature
or highly corrosive chemicals are used, such as in Liquid Crystal Display (LCD) screen
manufacture during the etching process, or solar panel processing. These bearings are
made using specifically chosen materials, such as Ultra High Molecular Weight Polyethylene
(UHMWPE) or Polyetheretherketone (PEEK) and corrosion resistant balls, including glass and
zirconium oxide. They are able to withstand a greater degree of chemical attack and higher
temperatures than Acetal or Polypropylene bearings.
The range includes:
• Radial bearings in UHMWPE & PEEK
• Slot bearings with anti-rotation features
• Wheels & rollers
